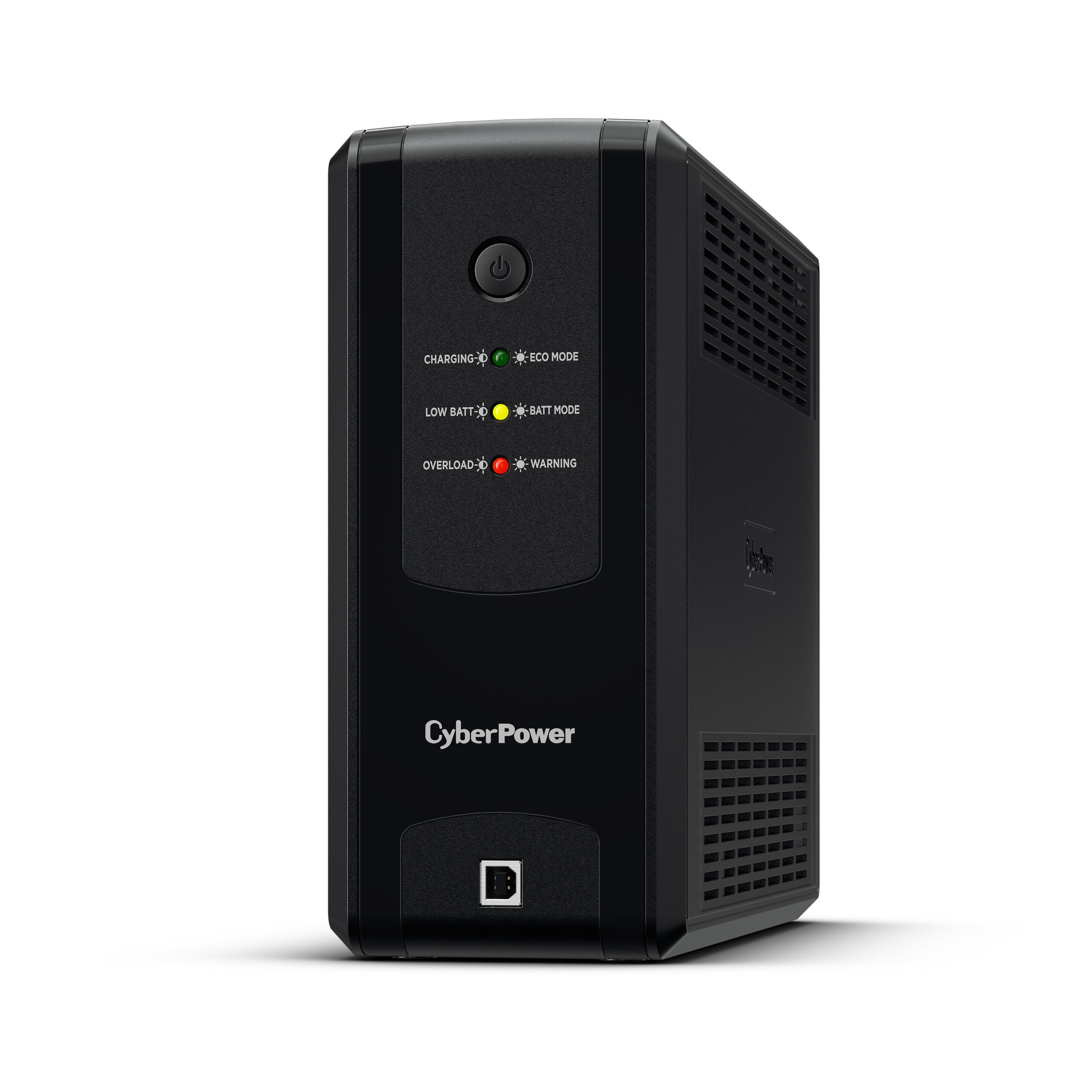

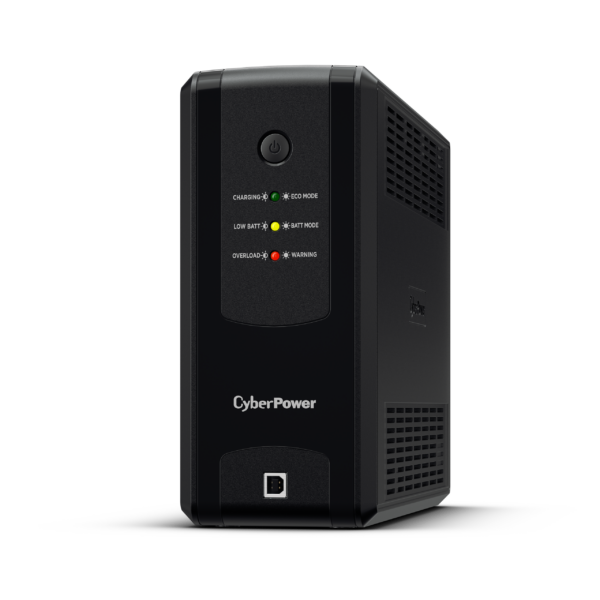

Cyberpower UT1050EIG Desktop UPS IEC 1050VA/630W

CyberPower UT1050EIG guarantees power protection for computers, POS systems, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design helps UPS achieve ultra-low power consumption to reduce energy costs while lowering UPS operating temperature, which extends its battery lifespan. The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.

Features

• Line-interactive UPS Topology
• Automatic Voltage Regulation (AVR)
• LED Status Indicator
• Surge and Spike Protection
• High-speed Ethernet Data Transmission
• PowerPanel Management Software
• EMI and RFI Filtration

• Energy Saving Technology
• Generator Compatible
• Overload Protection
• Phone/Fax/Modem/DSL/Network Protection
• USB Connectivity Port
• Configurable Alarm

General

Phase

Single Phase

Form Factor

Tower

UPS Topology

Line-interactive

Energy Saving Technology

GreenPower UPS™ Bypass Technology

Input

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

165 ~ 290

Input Frequency ( Hz )

50 ± 5

60 ± 5

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

4.56

Input Connector Type

UK

Power Cord Length (ft.)

4

Power Cord Length (m.)

1.2

Output

Capacity (VA)

1050

Capacity (Watts)

630

On Battery Waveform

Simulated Sine Wave

On Battery Voltage(s) ( Vac )

230 ± 10 %

On Battery Frequency ( Hz )

50 ± 1%

60 ± 1%

Automatic Voltage Regulation (AVR)

Single Boost, Single Buck

Overload Protection

Internal Current Limiting, Circuit Breaker

Outlet(s) – Total

6

Outlet Type

IEC C13 x 6

Outlet(s) – Battery & Surge Protected

4

Outlet(s) – Surge-Only Protected

2

Typical Transfer Time ( ms )

4

Battery

Runtime at 60W ( min )

65

Runtime at 90W ( min )

43

Runtime at 200W ( min )

14

Typical Recharge Time ( Hours )

6

Start On Battery

Yes

User-replaceable

No

Battery Type

Sealed Lead-acid

Surge Protection & Filtering

Surge Suppression ( Joules )

150

EMI/RFI Filtration

Yes

Phone/Network Protection RJ11/RJ45 (Combo)

1-in, 1-out

Management & Communications

LED Indicators

Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload, UPS Fault

HID Compliant USB Port(s)

1

Audible Alarms

Battery Mode, Low Battery, Overload, UPS Fault

Management Cable ( pcs )

Power Cord x1

Ethernet Data Transmission Speed

Up to 1Gbps

Power Management Software

PowerPanel Personal (Recommended)

Physical

Enclosure Construction

Plastic

Color

Black

Physical Size – UPS Module

Dimensions (WxHxD) (in.)

3.74 x 8.66 x 12.08

Dimensions (WxHxD) (mm.)

95 x 220 x 307

Weight (lbs.)

15.21

Weight (kg.)

6.9

Shipping Dimensions

Dimensions (WxHxD) (in.)

4.69 x 11.46 x 13.66

Dimensions (WxHxD) (mm.)

119 x 291 x 347

Weight (lbs.)

15.92

Weight (kg.)

7.22

Environmental

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

0 ~ 90

Operating Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

0 ~ 90

Storage Elevation ( feet/meters )

0-9,843 feet (0-3,000 meters)

Online Thermal Dissipation ( BTU/hr )

27

Certifications

Certifications

CE

RoHS

Yes
